Triplex Reciprocating Pressure Test Pumps: Benefits and Key Features

In the field of industrial high pressure testing, triplex reciprocating pressure test pumps demonstrate outstanding performance stability and testing accuracy through their unique structural design.

1. Working Principle

The triplex reciprocating pressure test pump is a positive displacement pump. A motor drives a crank and connecting rod mechanism, converting rotary motion into reciprocating linear motion of three plungers for fluid suction and discharge. With crank phases offset by 120°, the cylinders' suction and discharge strokes overlap alternately, smoothing instantaneous flow fluctuations. No additional accumulator is needed — the pump delivers nearly constant high pressure fluid for stable pressure testing.

2. Technical Features

• The low-pulsation characteristic of the triplex structure is its notable technical advantage, far superior to single-cylinder and double-cylinder pumps.
• Optimized overall dynamic balance significantly reduces body vibration. The equipment operates smoothly even at high pressure and high speed, extending the service life of key wearing parts such as seals and bearings.
• Modular pump heads and precision-machined plunger assemblies ensure high volumetric efficiency and pressure-bearing capacity, meeting the reliability requirements of demanding industrial environments.

3. Advantages

• Extremely high pressure stability ensures the accuracy of test data, particularly suitable for high-precision calibration scenarios sensitive to pressure fluctuations.
• The compact structure eliminates the need for a large accumulator, saving installation space while reducing overall system cost and maintenance complexity.
• Excellent dynamic balance results in low noise and minimal vibration, improving the working environment and enhancing operational safety.
• Wide medium adaptability and long-life design significantly reduce lifecycle operating costs.

4. Selection Recommendations

• Define pressure and flow: Based on the maximum test pressure and filling speed of the test object, select a pump model with sufficient safety margin to ensure reliability during long-term full-load operation.
• Define test medium characteristics: For corrosive liquids or high-viscosity oils, select sealing components and plunger coatings made of corresponding materials to improve corrosion and wear resistance.
• Choose a suitable drive method: Electric motor drive is preferred. For field operations or explosion-proof areas, choose a diesel engine or explosion-proof motor.
• Consider intelligent control systems: Prioritize intelligent models to achieve automated monitoring and safety protection, improving testing efficiency.

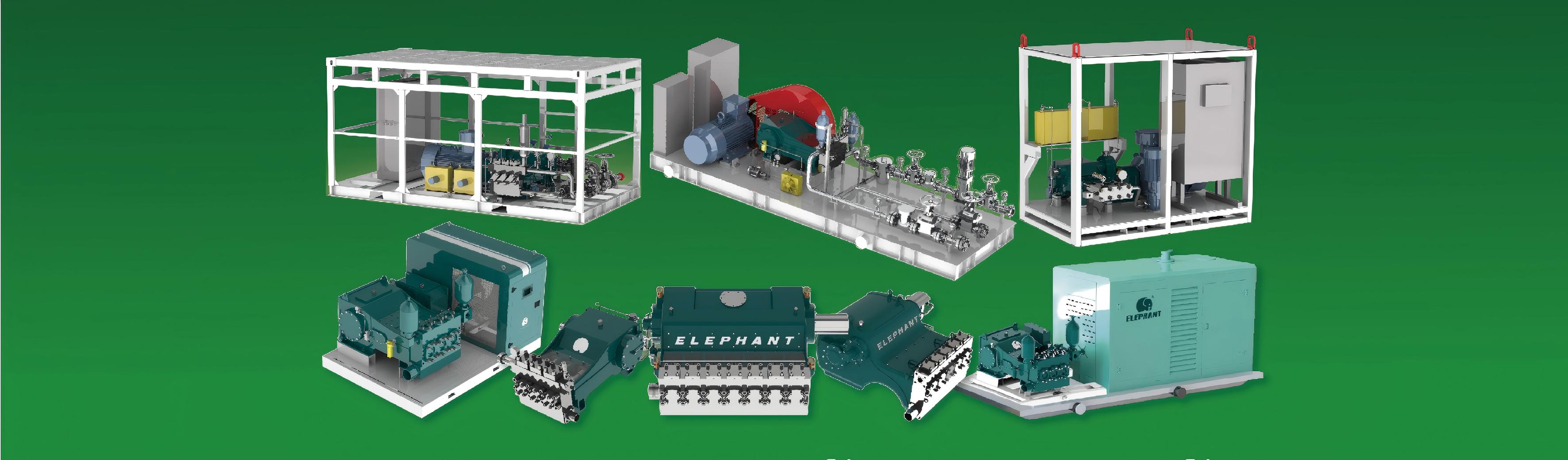

Triplex reciprocating pressure test pumps have become core equipment in the field of industrial high pressure hydrostatic testing. Elephant Machinery offers two standard pressure test pump models — DS25 and DS70 — and can also provide customized services. If you have any requirements, please feel free to contact us at any time!
