Buying Heavy-Duty High Pressure Plunger Pump Skid Units

1. Technical Parameters

Defining flow rate and pressure is the primary step in parameter specification. Determine the output flow rate and operating pressure range under rated conditions, and confirm whether the system supports stepless flow adjustment to meet varying process demands. The motor power should precisely match the pump unit's load characteristics to ensure operational efficiency across the full operating range, while meeting electrical safety requirements such as explosion-proof rating, protection rating (e.g., IP55 or higher), and insulation class (e.g., Class F). Additionally, the complete unit design should comply with API 674 or equivalent international standards, and the materials of pressure-containing components should be capable of resisting the corrosiveness and abrasiveness of the conveyed media.

3. Skid Design and Integration

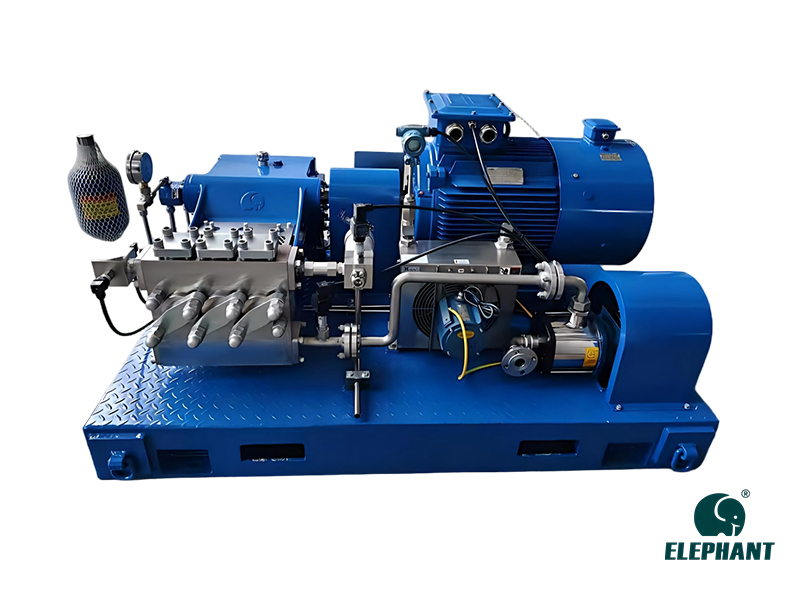

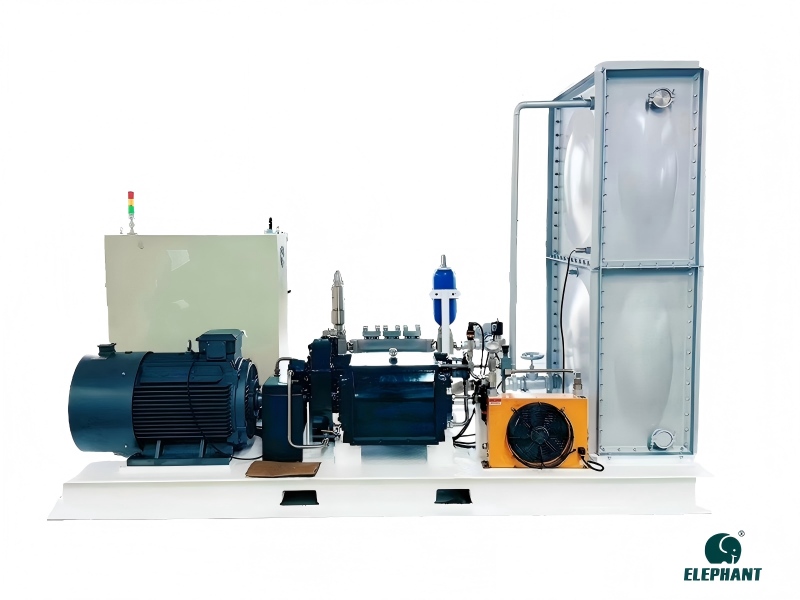

The skid structure and dimensions should be determined based on site requirements. The skid is typically fabricated from high-strength structural steel with integral welding, meeting lifting, transportation, and long-term operational load requirements while preventing structural deformation or resonance. All core components — including pump body and drive motor — are integrated onto the skid, optimizing layout to reduce footprint while reserving space for operation and maintenance. An integrated safety protection module, including pressure overload protection, bearing temperature monitoring, and leakage alarms, enables real-time monitoring and automatic shutdown in abnormal conditions, ensuring operational safety.
