Model :
DS-70Type :
Plunger PumpStroke :
75Cylinder Diameter :
12Flow :
9-313Pressure :
280Shipping Port :
Shanghai Port, ChinaWarranty :

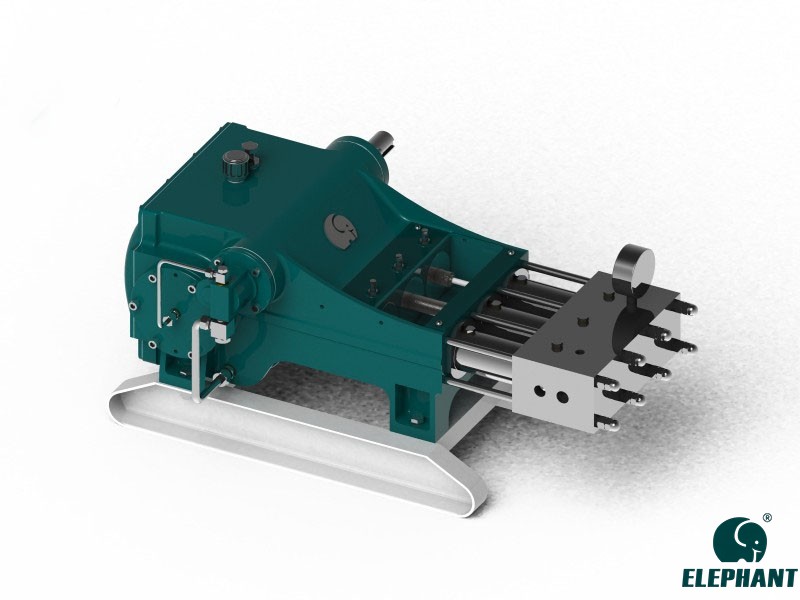

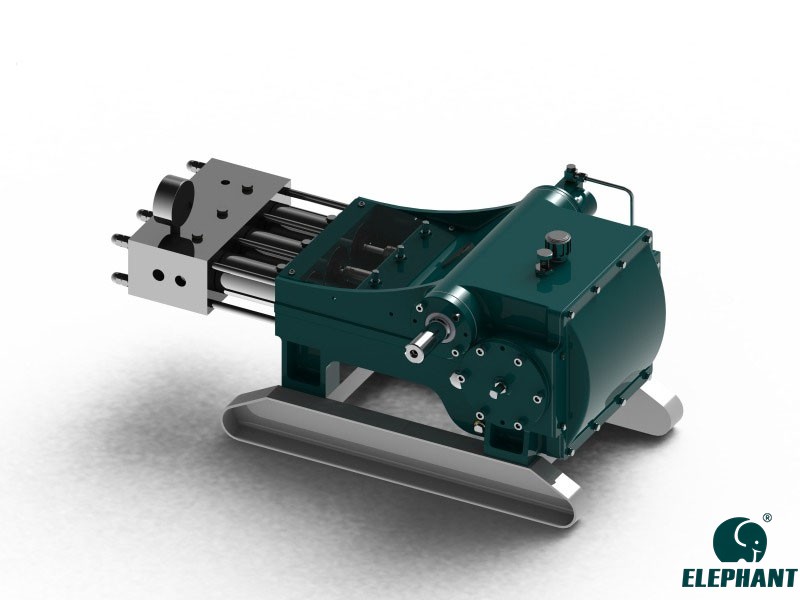

12 MonthsThe DS-70 high pressure pump is a single-acting triplex reciprocating plunger pump, which is independently designed, developed and manufactured by the company and integrates advanced domestic and foreign technologies. It can be used for Oilfield, Coal Mining, Industrial Cleaning and etc.
Liquid end and power end designs of various materials and structural forms can be provided according to the medium composition of the application scenario, with various structural forms such as built-in reduction size or external reduction gearbox. The plunger sealing forms mainly include packing seals, polymer seals and other sealing structures adapted to the working conditions.
Features:
1. The wearing parts have long life, high reliability and beautiful overall appearance.
2. With vibration sensing intelligent feedback unattended system.
3. It can be equipped with forced lubrication system, oil temperature alarm, oil pressure alarm, flow pressure monitoring.
4. It has hydraulic, motor, diesel engine and other drive forms.
Technical Parameters and Specifications:
| Type | Horizontal Triplex Reciprocating Single Acting Plunger Pump |
| Model | DS-70 |
| Stroke Length (mm) | 75 |
| Liner Diameter (mm) | 12 |
| Pump Speed (r/min) | 400 |
| Flow (L/min) | 9-313 |
| Pressure ( Mpa) | 280 |
| Rated Power (KW) | 55 |
| Outline Dimension (mm) | 1050*700*380 |
| Weight (kg) | 490 |
To provide you with various specifications of piston & plunger pumps products and services
