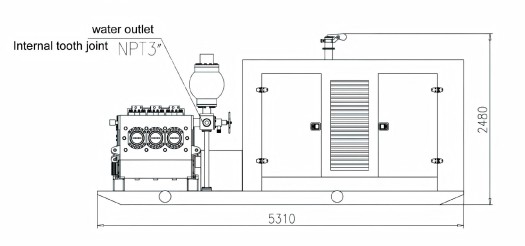

CBW-2200 Pipeline Booster Triplex Pump System

The CBW-2200 pipeline booster pump is a horizontal triplex plunger pump. This pump features a horizontal configuration and is equipped with three plungers, offering unique performance and functionality for pipeline pressure boosting.

Driven by a diesel engine, the crankshaft rotation propels the triple plungers to perform reciprocating motion within the cylinder. By utilizing the volume changes within the sealed chambers formed by the plungers and cylinder walls, it achieves the intake and discharge of liquid. This effectively elevates the pressure of fluids within pipelines, meeting boosting requirements across diverse operating conditions. Its compact structure and stable operation ensure reliable performance in multiple scenarios, providing continuous and steady pressure support for fluid conveyance.

Technical Parameters and Specifications

Functions

The function of a pipeline booster pump lies in converting mechanical energy into fluid pressure energy through the reciprocating motion of its internal piston or plunger. This effectively increases the pressure and flow of fluids within pipelines, ensuring stable pressure and flow rates during long-distance transportation. It meets specific pressure requirements for fluid conveyance under various operating conditions, thereby guaranteeing the efficient and smooth operation of the entire pipeline transportation system.
