Model :
BW-100QType :
Hydraulic Mud PumpStroke :
48Cylinder Diameter :
55Flow :
100 L/minPressure :
7 MpaShipping Port :
Shanghai Port, ChinaWarranty :

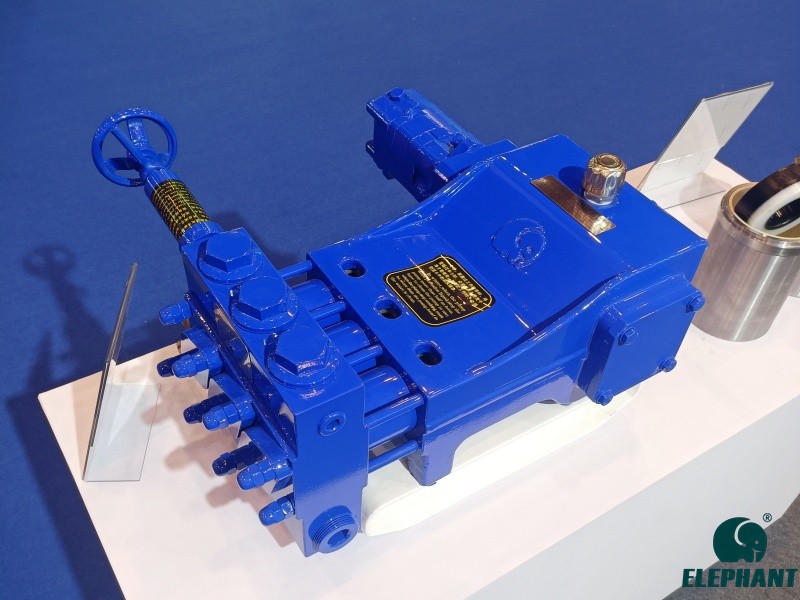

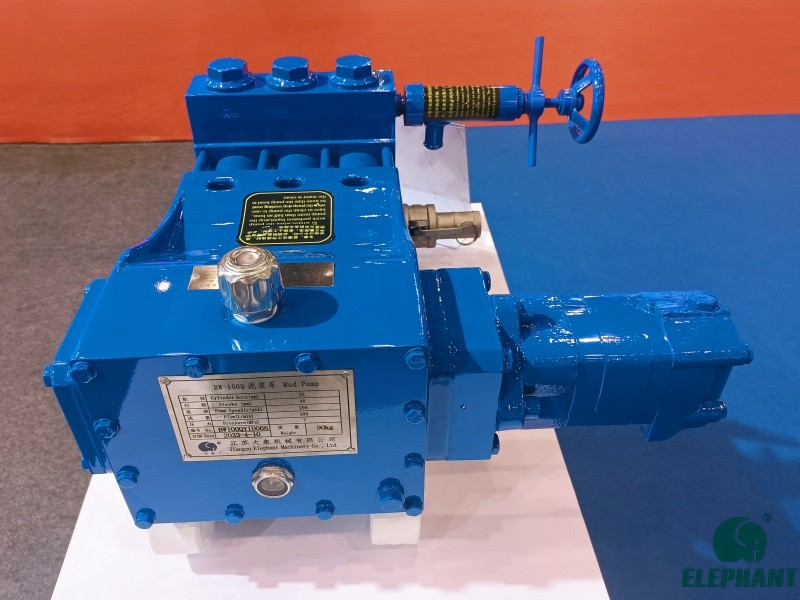

12 MonthsBW-100Q hydraulic drive mud pump is a horizontal, triplex, single acting reciprocation piston pump.
Technical Parameters and Specifications:
| Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) | 48 |
| Cyclinder Diameter (mm) | 55 |
| Flow ( L/min) | 100 |
| Pressure (Mpa) | 7 |
| Input Speed (r/min) | 295 |
| Input Power (KW) | 13 |
| Dimensions (mm) | 545*532*278 |
| Weight (kg) | 90 |
| Hydraulic Motor Model | 2K604-0045 |
| Hydraulic Motor Pressure (Mpa) | 18 |
| Maximum Motor Flow (L/min) | 58 |
Check this video to get more information regarding our BW-100Q reciprocating mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
2 - The Partners we cooperate.

3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
