DS-70 Plunger Pump For Pressure Testing Supplier

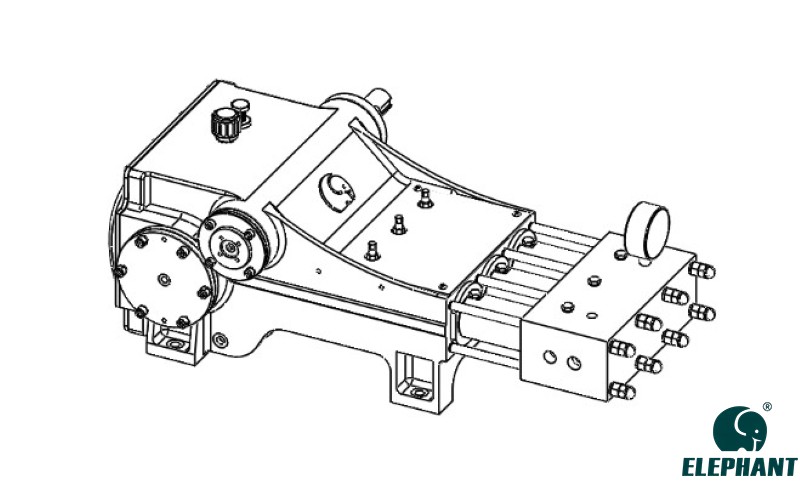

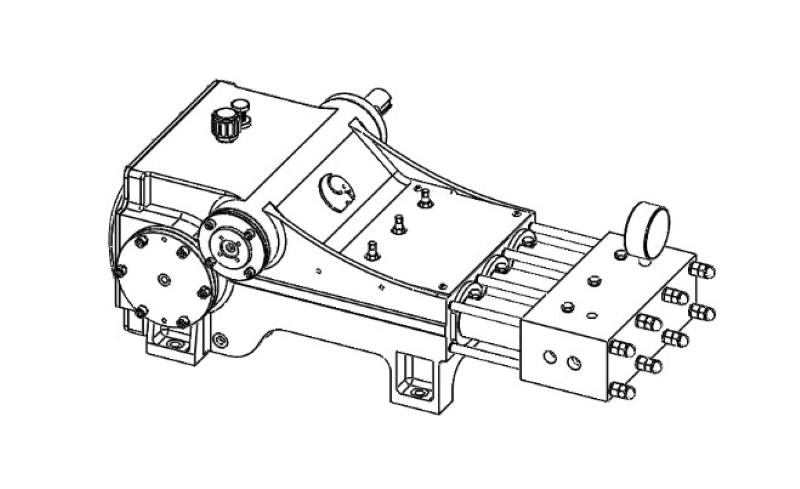

The DS-70 pump is a single acting triplex reciprocating plunger pump.

Model :

DS-70

Type :

Plunger Pump

Stroke :

3.0 Inches / 75 mm

Cylinder Diameter :

12-21mm

Flow :

2.5-32LPM/0.66-8.4GPM

Pressure :

90-280MPa

Shipping Port :

Shanghai Port, China

Warranty :

12 Months

Specifications:

Design Standard	API-674, Third Edition
Conﬁguration	Horizontal Triplex Plunger
Number of Plungers	3
Continuous Duty	74 BHP
Intermittent Duty	100 BHP
Stroke Length	3.0 Inches / 75 mm
Frame Load Rating	6974 lbs / 3170 kg
Pump Weight (Average)	770 lbs / 350 kg
Intermittent Duty Speed Rating	400 RPM
Continuous Duty Speed Rating	350 RPM
Minimum Speed	100 RPM
Mechanical Eﬃciency	90%
Lubrication System	Splash, Gravity Return
Crankcase Oil Capacity	38 Gallons / 143.83 L
Lube Oil Type	SAE30
Fluid Temperature Range	-20~350°F/-28~176°C
Valve Type	Disc Valve / Wear-resistant Valve

Performance Data (Metric):

Pump Model	Plunger Diameter (mm)	Displacement (L/REV)	Maximum Pressure (MPa)	Pump Capacity (LPM)@Input Speed (RPM)
Pump Model	Plunger Diameter (mm)	Displacement (L/REV)	Maximum Pressure (MPa)	100	200	300	330	500	600
DS7001	12	0.025	280	2.5	5	7.7	8.4	8.9	10.2
DS7002	13.5	0.032	220	3.4	6.4	10.2	11.3	11.9	13
DS7003	15	0.0397	180	4.2	8.4	12.5	13.6	14.8	16
DS7004	16.5	0.047	150	4.8	9.6	14	15.9	16.7	19
DS7005	18.5	0.059	120	6	12.1	18.2	20	21.2	24
DS7006	21	0.079	90	8	15.5	23.5	25	27.3	32

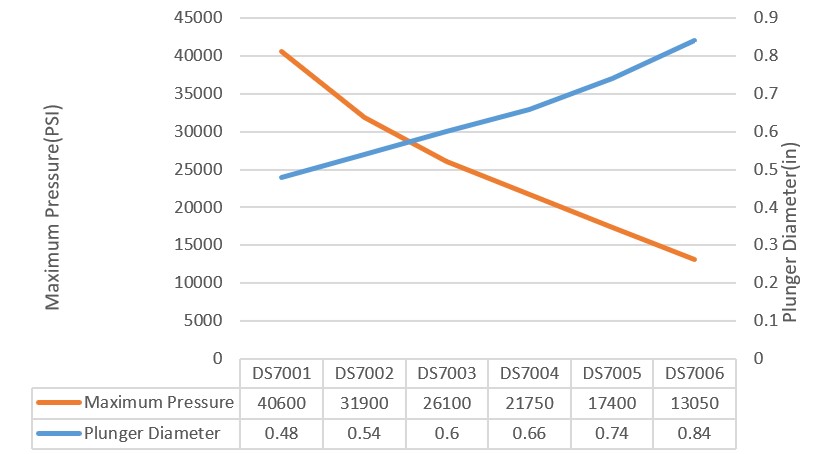

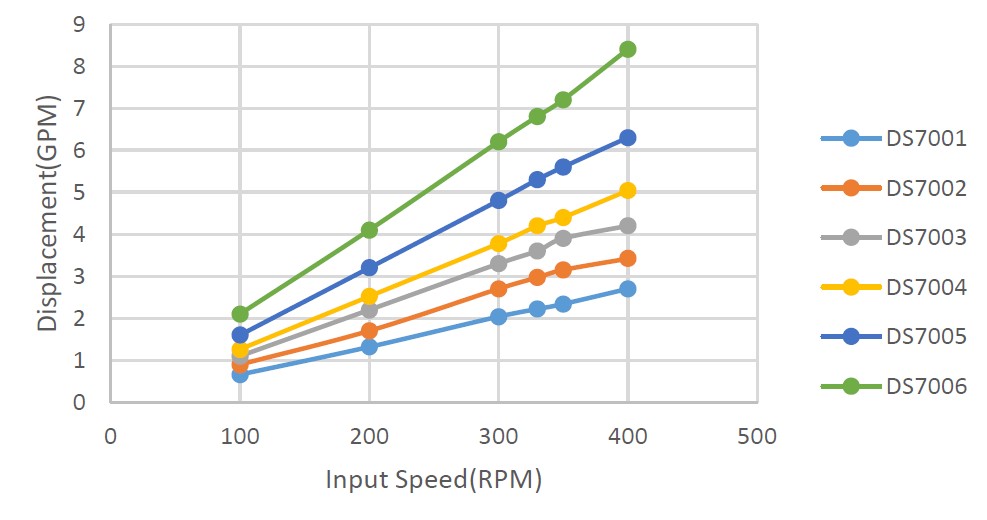

Performance Data:

Pump Model	Plunger Diameter (in)	Displacement (GAL/REV)	Maximum Pressure (PSI)	Pump Capacity (GPM)@Input Speed (RPM)
Pump Model	Plunger Diameter (in)	Displacement (GAL/REV)	Maximum Pressure (PSI)	100	200	300	330	500	600
DS7001	0.48	0.00675	40600	0.66	1.32	2.04	2.22	2.34	2.7
DS7002	0.54	0.00855	31900	0.9	1.7	2.7	2.97	3.15	3.42
DS7003	0.6	0.0105	26100	1.1	2.2	3.3	3.6	3.9	4.2
DS7004	0.66	0.0126	21750	1.26	2.52	3.78	4.2	4.4	5.04
DS7005	0.74	0.01575	17400	1.6	3.2	4.8	5.3	5.6	6.3
DS7006	0.84	0.021	13050	2.1	4.1	6.2	6.8	7.2	8.4

Standard connection sizes:

Fluid cylinder materials:

*Special materials are available upon request

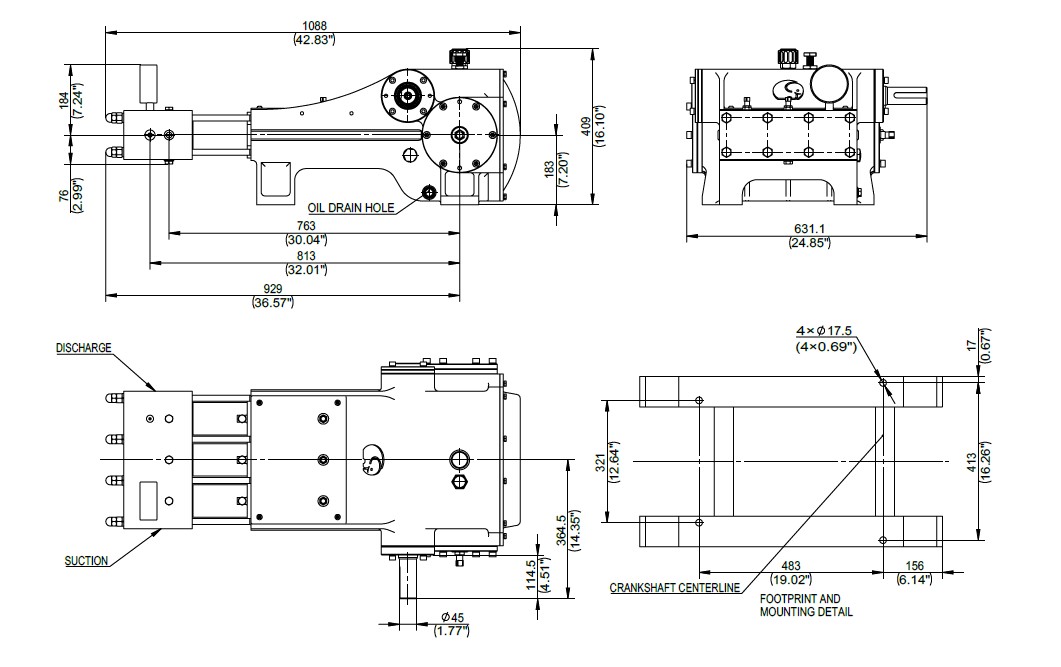

Engineering dimensional outline
