Model :
DS-25Type :
Plunger PumpStroke :
2.4 Inches / 60 mmCylinder Diameter :
12-25mmFlow :
2-52LPM/0.54-13.8GPMPressure :
21-92MPaShipping Port :
Shanghai Port, ChinaWarranty :
12 MonthsSpecifications:
| Design Standard | API-674, Third Edition |
| Configuration | Horizontal Triplex Plunger |
| Number of Plungers | 3 |
| Continuous Duty | 25 BHP |
| Intermittent Duty | 30 BHP |
| Stroke Length | 2.4 Inches / 60 mm |
| Frame Load Rating | 2288 lbs / 1040 kg |
| Pump Weight (Average) | 4400 lbs / 200 kg |
| Intermittent Duty Speed Rating | 600 RPM |
| Continuous Duty Speed Rating | 500 RPM |
| Minimum Speed | 100 RPM |
| Mechanical Efficiency | 90% |
| Lubrication System | Splash, Gravity Return |
| Crankcase Oil Capacity | 38 Gallons / 143.83 L |
| Lube Oil Type | SAE30 |
| Fluid Temperature Range | -20~350°F/-28~176°C |
| Valve Type | Disc Valve / Wear-resistant Valve |
Performance Data (Metric):
| Pump Model |
Plunger Diameter (mm) |
Displacement (L/REV) |
Maximum Pressure (MPa) |
Pump Capacity (LPM)@Input Speed (RPM) | |||||
| 100 | 200 | 300 | 330 | 500 | 600 | ||||
| DS2501 | 12 | 0.02 | 92 | 2 | 4 | 6 | 6.7 | 10.2 | 12.3 |
| DS2502 | 16 | 0.036 | 53 | 3.6 | 7.2 | 10.7 | 11.8 | 17.8 | 21.4 |
| DS2503 | 18 | 0.046 | 41 | 4.6 | 9.2 | 13.9 | 15.3 | 23.1 | 27.4 |
| DS2504 | 22 | 0.068 | 28 | 6.8 | 13.6 | 20.5 | 22.5 | 34.1 | 41 |
| DS2505 | 25 | 0.09 | 21 | 8.7 | 17.8 | 26.5 | 29.2 | 45 | 52 |
Performance Data:
| Pump Model |
Plunger Diameter (in) |
Displacement (GAL/REV) |
Maximum Pressure (PSI) |
Pump Capacity (GPM)@Input Speed (RPM) | |||||
| 100 | 200 | 300 | 330 | 500 | 600 | ||||
| DS2501 | 0.48 | 0.0054 | 13420 | 0.54 | 1.08 | 1.62 | 1.78 | 2.7 | 3.24 |
| DS2502 | 0.64 | 0.0094 | 7700 | 0.94 | 1.88 | 2.82 | 3.1 | 4.7 | 5.64 |
| DS2503 | 0.72 | 0.0122 | 5940 | 1.22 | 2.44 | 3.66 | 4.03 | 6.1 | 7.32 |
| DS2504 | 0.88 | 0.018 | 4025 | 1.8 | 3.6 | 5.4 | 5.94 | 9 | 10.8 |
| DS2505 | 1 | 0.0238 | 3045 | 2.3 | 4.7 | 7 | 7.7 | 11.9 | 13.8 |
Standard connection sizes:
| Pump Model | Suction (in) | Discharge(in) |
| DS2501 | 0.64 | 0.26 |
| DS2502 | 0.85 | 0.35 |
| DS2503 | 1 | 0.4 |
| DS2504 | 1.1 | 0.5 |
| DS2505 | 1.4 | 0.6 |
Fluid cylinder materials:
| Fluid cylinder materials | Cast |
| Carbon Steel | N/A |
| Hi-Strength Carbon Alloy Steel | |
| 304 / 316L / 17-4PH / 2205 / 2507 Stainless Steel |
*Special materials are available upon request

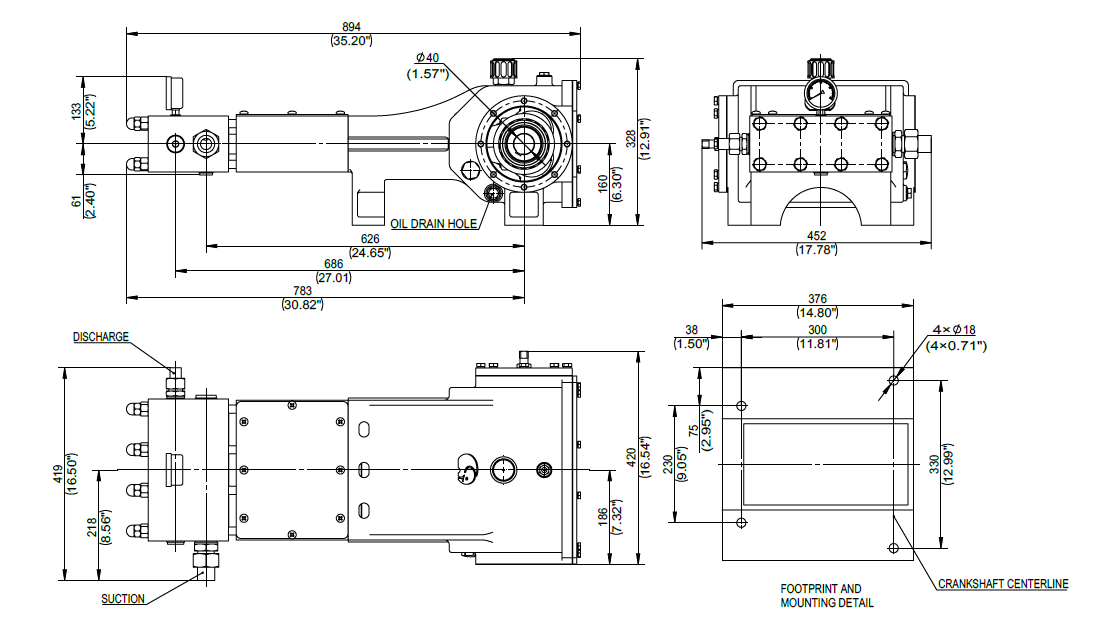

Engineering dimensional outline
