Model :
BW-75QType :
Triplex PumpStroke :
40Cylinder Diameter :
50Flow :
75 L/minPressure :
6 MpaShipping Port :
Shanghai Port, ChinaWarranty :

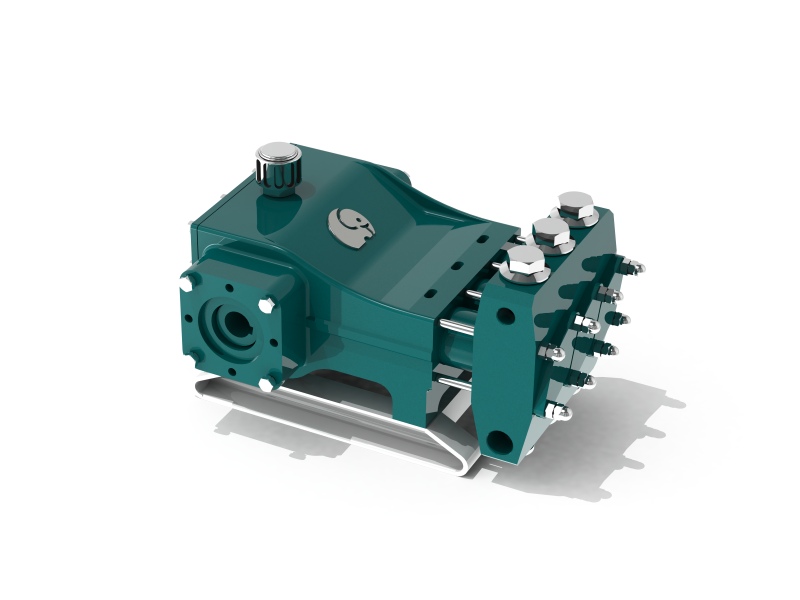

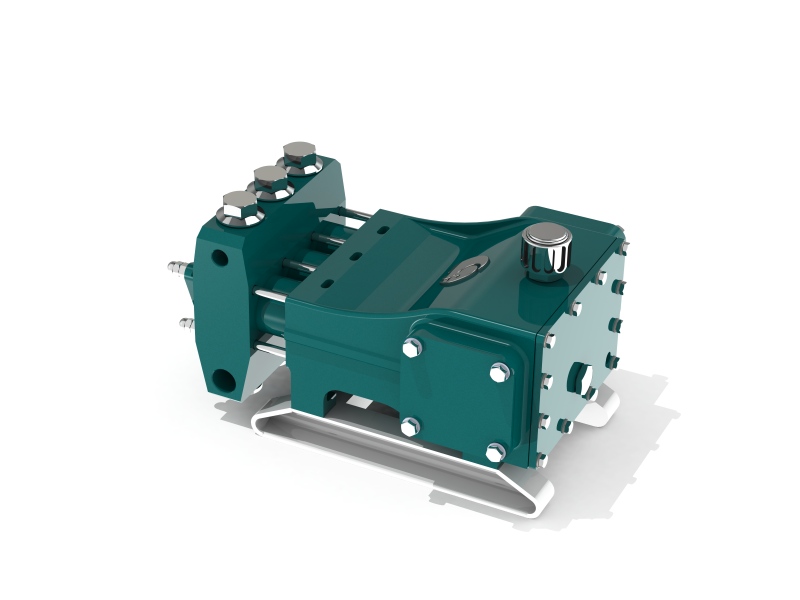

12 MonthsThe BW-75Q reciprocating pump is a horizontal triplex single-acting piston pump driven by a hydraulic motor. It is primarily designed for crude oil transportation and as a supporting equipment for portable core drilling rigs. Additionally, it can be utilized for other applications such as grouting, mine drainage, and long-distance water delivery.
Technical Parameters and Specifications:
| Type | Horizontal Triplex Reciprocating Single Acting Piston / Plunger Mud Pump |
| Stroke (mm) | 40 |
| Cyclinder Diameter (mm) | 50 |
| Flow ( L/min) | 75 |
| Pressure (Mpa) | 6 |
| Input Speed (r/min) | 320 |
| Input Power (KW) | 9 |

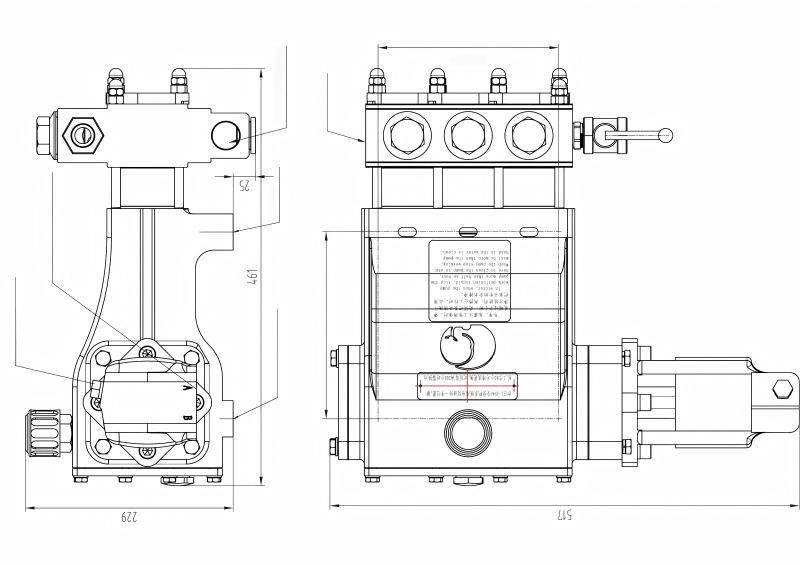

| Dimensions (mm) | 461*517*254 |
| Weight (kg) | 72 |
| Hydraulic motor model | 2K604-0043 |
| Hydraulic motor pressure(Mpa) | 17 |
| Maximum motor flow(L/min) | 45 |
Advantages:
At Elephant Machinery, we offer customizable motor-pump units for this industry. Moreover, we can develop entirely new pump models tailored to customers' specific requirements, ensuring every solution is the most optimal and cost-effective choice.
BW-75Q hydraulic drive crude oil transfer pump is a horizontal, triplex, single acting reciprocation piston/plunger pump.
Learn More
BW-100Q crude oil transfer pump is a horizontal, triplex, single acting reciprocation piston pump.
Learn More
