Model :
BW-100QType :
Piston Triplex PumpStroke :
48mmCylinder Diameter :
55mmFlow :
100 L/minPressure :
7 MpaShipping Port :
Shanghai Port, ChinaWarranty :
12 MonthsThe BW-100Q reciprocating pump is a horizontal triplex reciprocating single-acting piston pump, driven by a hydraulic motor. It is primarily designed for crude oil transportation and supporting 10-ton class trenchless drilling rigs, while also being applicable for other purposes such as grouting, mine drainage, long-distance water delivery, and other similar applications.
Technical Parameters and Specifications:
| Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) | 48 |
| Cyclinder Diameter (mm) | 55 |
| Flow ( L/min) | 100 |
| Pressure (Mpa) | 7 |
| Input Speed (r/min) | 295 |
| Input Power (KW) | 13 |
| Dimensions (mm) | 545*532*278 |
| Weight (kg) | 90 |
| Hydraulic Motor Model | 2K604-0045 |
| Hydraulic Motor Pressure (Mpa) | 18 |
| Maximum Motor Flow (L/min) | 58 |
Advantages:

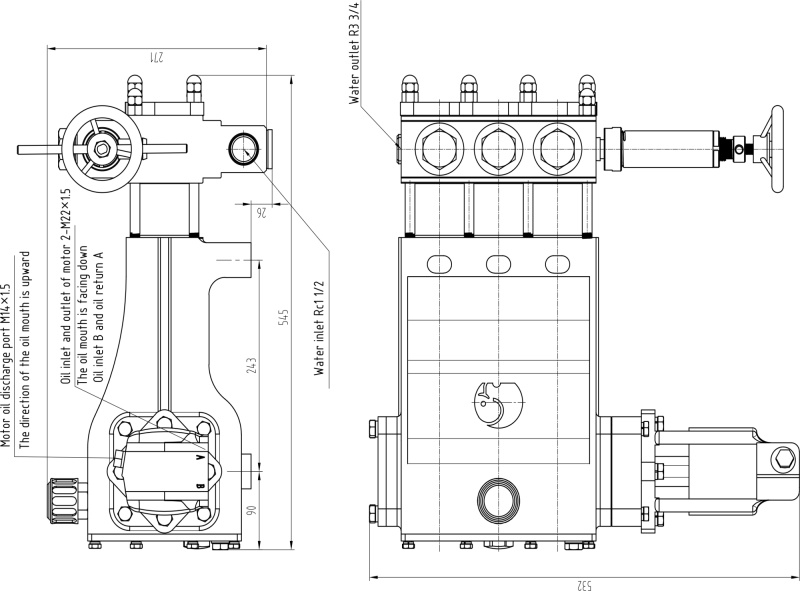

Engineering dimensional outline：
Elephant Machinery specializes in customizing motor-pump units for this industry and is committed to providing the best single pumps and complete pump unit solutions for global customers.
BW-75Q hydraulic drive crude oil transfer pump is a horizontal, triplex, single acting reciprocation piston/plunger pump.
Learn More
BW-100Q crude oil transfer pump is a horizontal, triplex, single acting reciprocation piston pump.
Learn More
